4Bar PVC Layflat Hose – RUBBER&PLASTIC PVC Hose

PVC LAYFLAT HOSE - 4Bar PVC Layflat Hose

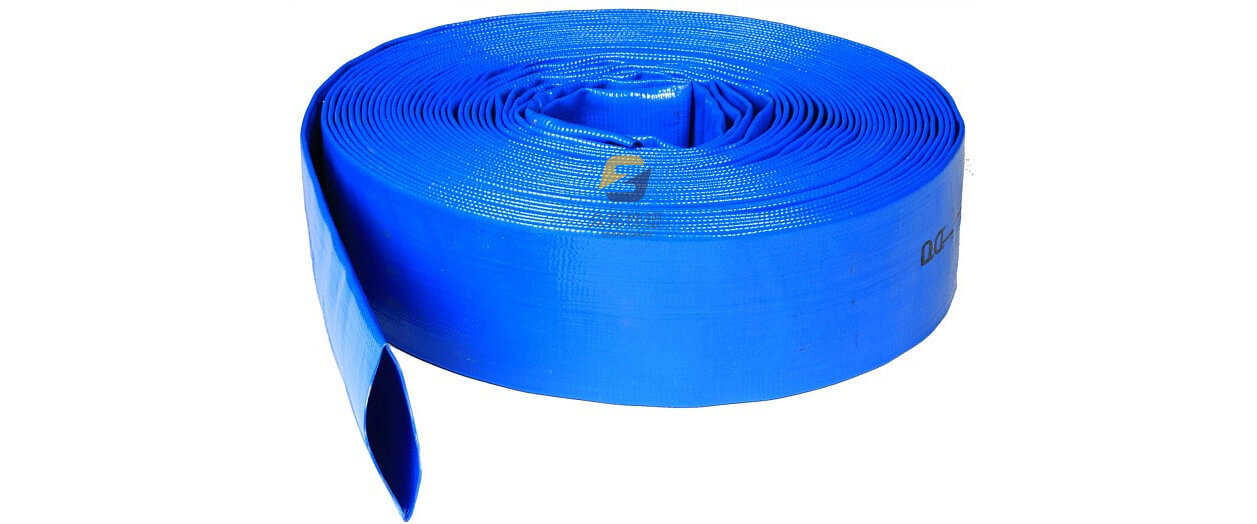

4BAR PVC LAYFLAT HOSE

PVC with high tensile strength Yarn Braided
Light weight,good flexiblility,anti-aging, anti-uv.
Easy use&storage, different colors are available.
Suitable for conveying liquid materials in industry,agricultural irrigation, mines
WP:4BAR BP:12BAR
Temperature:-10 to +60℃

Size Inch	ID MM	Thickness MM	WP BAR	BP BAR	Length m/Roll	Weight g/M
1″	25	1.13	4	15	100	150
1-1/4″	32	1.2	4	15	100	170
1-1/2″	38	1.2	4	15	100	200
2″	51	1	4	12	100	230
2-1/2″	65	1.1	4	12	100	320
3″	76	1.1	4	12	100	350
4″	102	1.25	4	12	100	550
5″	127	1.35	3.5	10	100	750
6″	152	1.35	3	9	100	850
8″	203	2	3	9	100	1700
10″	254	2.4	2.5	7	100	2600
12″	305	2.35	2	6	100	3000

→
